Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming

Supply Ability : 15 SETS PER MONTH

Brand Name : LB

Heating Method : Light heating

Model Number : LB-80/156

Certification : CE ISO

Price : Negotiable（USD EUR）

Packaging Details : NORMAL PACKAGE

Warranty : 2 years

Install Power : 37~600kw

Coolingmethod : Air Cooling / Water Cooling

Processed Pipe : PVC pipe

Expansion Shape : U shape, R shape, Rectangle shape

Type : Full-automatic and Semi-automatic

Place of Origin : ZHANGJIAGANG

Payment Terms : L/C,T/T

Belling Range : 16~630mm

MOQ : 1 SET

Delivery Time : 45 WORKING DAYS

Contact Now

Pipe Belling Machine Production Line For Stable Expansion And Smooth Socket Forming

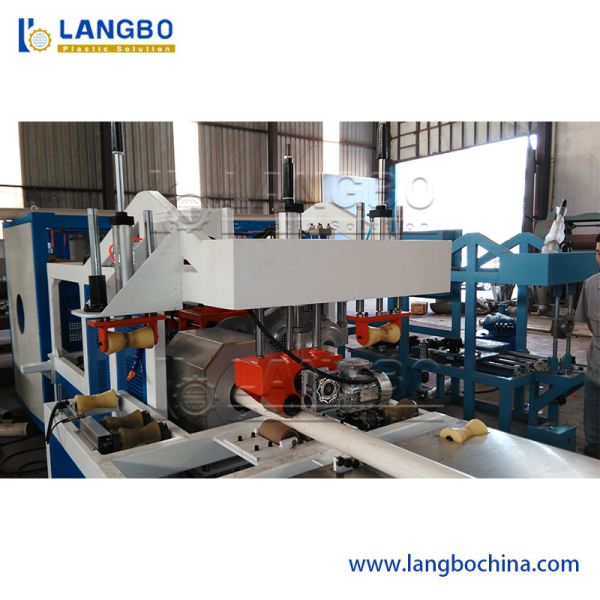

Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage

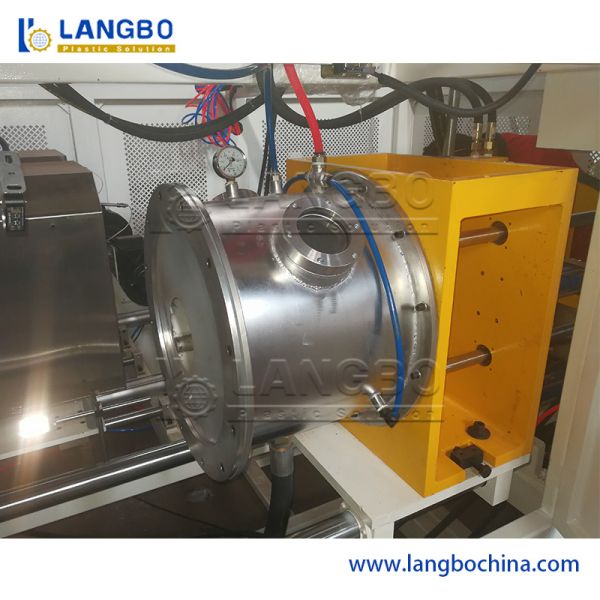

Infrared ray heating system with double-heating furnace configuration
Each heating furnace equipped with central heating furnace core
Expansion tube head shaping method for precise nozzle dimensions
Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
Main electric control components utilize imported parts for stable, reliable system performance

Technical Specifications

Pipe Expand Range (Outer Diameter)	Φ 20-630mm
Belling Type	R type & U type
Used Oil Label	No. 40/Hydraulic Oil
Quantity of Heater	2
Highest Temperature in Heater	280°C
Gas Pressure	0.6~0.8Mpa
Water Pressure	0.2~0.3Mpa
Pipe Length	3-6m
Center Height	900mm ± 50mm
Machine Dimensions	8615 * 3125 * 2500mm
